Prefab Labour Hutments & Staff Housing
Modular, factory-built labour hutments and staff accommodation for rapid deployment at construction sites, industrial plants, and infrastructure projects. Insulated sandwich panels, IS 800 compliant steel frames, and plug-and-play MEP fittings. G+1/G+2 configurations available.
- Brand
- Portable Office Cabin
- Application
- Construction site offices, security cabins, on-site accommodation, ticket counters, retail kiosks & temporary offices
- Steel Grade
- MS CR Sheet / CRCA Sheet — IS 513 & IS 2062 · Corten · ISO-Grade
- MSME Certified
- UDYAM-TN-11-0068545
* Price may vary based on customization and delivery location
Key Features
- 20–30% cheaper than traditional RCC/brick construction with 80% material recovery on relocation
- G+1 colony for 100–300 workers installs in 3–6 weeks versus months for traditional construction
- Fire-retardant panels (BS 476 Class 1) with concealed FRLS wiring
- Cross-ventilation with MS grill windows, mosquito nets, and AC provisions
- Complete colony packages: dormitories, canteens, toilets, first-aid centres, security cabins
- Compliant with BOCW Act, NBC 2016, and IS structural standards
Specifications
| Structure | IS 800 compliant modular steel frame, 3–5mm sections |
| Panels | 40–60mm PUF/EPS insulated sandwich panels (0.4–0.5mm PPGI) |
| Thermal Range | -5°C to 50°C ambient |
| Configurations | G, G+1, G+2 dormitory and staff blocks |
| Capacity | 8–24 persons per module (bunk bed layout) |
| Installation | Factory prep 2–4 weeks + site install 7–21 days |
| Design Life | 10–15+ years, reusable across 3–5 project sites |
| Compliance | BOCW Act, NBC 2016, IS 456/800/875 |
Prefabricated Labour Hutments & Staff Accommodation by Portable Office Cabin
India's infrastructure push from 2024 to 2026 — driven by Bharatmala, Sagarmala, and metro expansions — demands housing for millions of migrant workers. Prefabricated labour hutments and staff accommodation offer modular, factory-built housing solutions designed for rapid deployment at construction sites, industrial plants, and infrastructure development projects. These structures address a critical gap: without proper facilities, construction companies face 30–40% workforce attrition.
Portable Office Cabin is a manufacturer and supplier of prefabricated labour colonies, portable cabins, and modular staff housing solutions across India. Our systems use insulated sandwich panels, steel frames, PEB structures, container conversions, and plug-and-play MEP fittings. This guide helps buyers compare options, understand technical features, and plan complete labour and staff colony layouts for metro rail projects, highway packages, refineries, mining sites, and large real-estate townships.
Why Choose Prefabricated Labour Hutments over Traditional Construction?
Prefabricated labor hutments deliver measurable advantages over traditional construction methods:
| Factor | Prefab Hutments | Traditional RCC/Brick |
|---|---|---|
| Installation time | 3–6 weeks | 4–6 months |
| Cost per bed | ₹20,000–40,000 | ₹50,000+ |
| Foundation needs | Simple plinth | Full RCC footings |
| Reusability | 3–5 sites over 10 years | Fixed location |
| Monsoon delays | Minimal | Significant |
Key Advantages
Rapid Deployment
A G+1 labour colony for 100–300 workers installs in 3–6 weeks versus months for RCC structures
Cost Effective Solution
20–30% savings from minimal foundations, no curing time, and reusability across multiple sites
Easy Relocation
Dismantling via bolted joints achieves 80% material recovery for subsequent project sites
Compliance Ready
Easier adherence to NBC 2016 guidelines for 3.5–4.5 sqm/person floor space and BOCW Act requirements
Reduced Dependency
Minimal reliance on local material supply and skilled masons — crucial for remote work sites
Key Features of Portable Office Cabin Labour & Staff Accommodation
Structural System
Heavy-duty modular steel framing (IS 800 compliant, 3–5mm sections). 40–50mm PUF/EPS insulated panels providing thermal insulation from -5°C to 50°C. GI/PPGI roofing with weather resistant specifications.
Interior Finishes
Vinyl/cement board flooring (anti-slip, 2–3mm thick). Washable emulsion walls for minimal maintenance. LED batten lights, ceiling fans, MCB-protected distribution boards.
Safety & Comfort
Fire-retardant panel options (BS 476 Class 1). Concealed FRLS wiring in PVC conduits. Cross-ventilation with MS grill windows and mosquito nets. Provisions for air coolers or split ACs in staff blocks.
Types of Prefabricated Labour & Staff Accommodation Solutions
Portable Office Cabin offers flexible design options covering both workers and staff housing needs:
Standard Labour Hutments
Dormitory-style blocks with bunk beds for 8–24 persons per module, shared toilets, common wash areas
Staff Accommodation
1BHK and 2BHK prefab structures for engineers and supervisors with attached toilets and kitchenettes
Container-Based Units
20ft and 40ft container cabins for quick installation and guaranteed protection

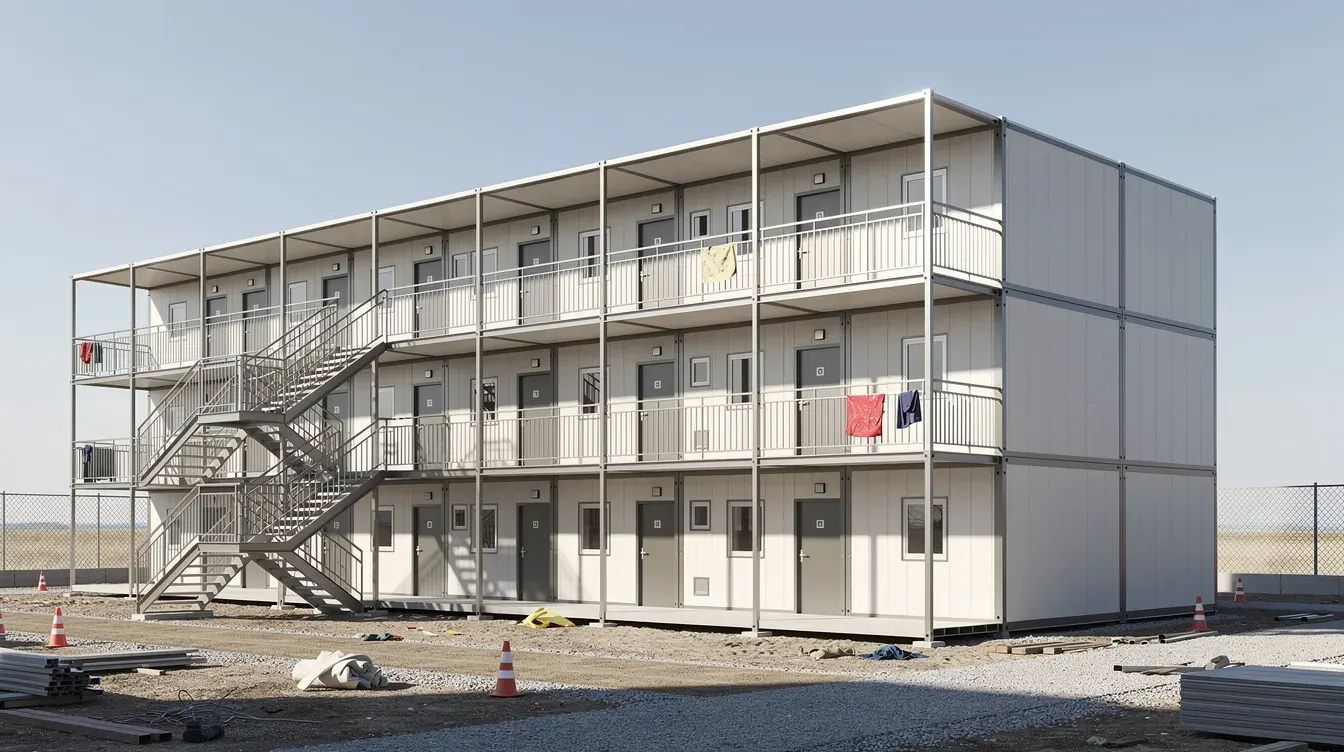

Multi-Storey Hutments
G+1 and G+2 solutions maximising space availability on land-scarce urban sites
Support Buildings
Prefab canteens (50–200 pax), first-aid centres, portable toilets, security cabins
All modules interconnect via covered walkways for monsoon-proof circulation, optimising land at 4–6 sqm/person including amenities.
Comfort, Safety & Hygiene Standards
Our prefabricated workers accommodation exceeds minimum standards to retain workers and reduce attrition:
Sleeping Arrangements
- Ergonomic triple bunks (1.8m height, 0.6×2m mattresses)
- 0.9m wide aisle spacing between bunks
- Individual storage provisions and adequate natural light
Sanitation Facilities
- Segregated male/female toilets (1:10 males, 1:5 females per BOCW)
- Exhaust fans (50 CFM/toilet) preventing odour buildup
- Connection provisions for septic tanks or STPs
Worker Safety
- Non-slip chequered plate flooring
- Glow-in-the-dark emergency signage
- Fire extinguishers, smoke detectors, Zone V earthquake compliant
Design, Customization & Layout Planning
Need Assessment Covers
- Bed count and staff/worker ratio (typically 80:20)
- Project duration (6–36 months)
- Climate zone and statutory requirements
Layout Planning Includes
- Zoning for labour quarters, staff blocks, kitchens, dining, recreation
- Proper circulation and emergency egress
- Adequate design for phased occupancy
Customization Options
- Panel thickness (40–80mm based on climate)
- Window sizes, floor finishes, furniture packages
- Vertical expansion provisions (G to G+1/G+2)
- Corporate branding and colour schemes
Typical Colony Layouts
| Colony Size | Land Required | Configuration |
|---|---|---|
| 50 beds | 0.25 acre | Basic dorms |
| 100 beds | 0.4 acre | G+1 with canteen |
| 250 beds | 0.6 acre | Zoned with recreation |
| 500 beds | 1+ acre | G+2 with STP |
Materials & Technical Specifications
Structural Steel
- IS 2062 grade (Fy 250 MPa)
- Epoxy primer (80 microns) + PU topcoat (50 microns) for sturdy construction
Wall Panels
- 40–60mm EPS/PUF core (density 32–40 kg/m³)
- Thermal conductivity 0.022–0.028 W/mK
- 0.4–0.5mm pre-painted GI sheets
Electrical
- Concealed 2.5 sqmm copper wiring
- ISI-marked switches, 6A MCBs
- 20 lux minimum lighting levels
Plumbing
- CPVC/uPVC piping
- Standard sanitary fittings (Jaquar/equivalent)
- Hot water line readiness available
Speed of Delivery, Installation Process & Project Timelines
Factory Fabrication (2–4 weeks)
- CNC panel cutting
- Frame welding and pre-finishing
- Door-window fitting with electrical cutouts
Site Installation (7–21 days)
- Crane-lift module placement
- Bolt/weld connections
- MEP final connections
Sample Timeline
A 100-bed G+1 modular labour hutment colony: factory prep 2–3 weeks + site install 10–14 days post civil readiness. Work progresses parallel to main site mobilisation, saving valuable time.
Durability, Maintenance & Lifecycle Costs
Design Life
10–15+ years with proper maintenance
Reuse Potential
3–5 project cycles with 40–50% steel salvage value
Repainting
Every 3–5 years (coastal/industrial areas)
Panel Replacement
Individual sections replaceable without full disassembly
Warranty
1–2 years structural, 5 years panels
AMC
Available at ₹5–10/sqm/year for large colonies
Sustainability & Energy Efficiency
Energy Reduction
Insulated panels cut cooling loads by 25–35%
Solar Integration
Rooftop PV provisions (1kW/100 beds)
Water Management
Low-flow fixtures (4–6L flush), rainwater harvesting options
Material Efficiency
90% waste reduction versus conventional construction; 95% steel recyclable
Typical Applications & Industry Segments Served
- Highway and expressway packages (NH, Bharatmala)
- Metro rail corridors and airports
- Power plants, refineries, oil & gas installations
- Steel and cement plants
- Mining operations
- Smart city and irrigation projects
- Educational campus expansions
- Large warehousing and logistics parks
Case Examples of Labour & Staff Colonies by Portable Office Cabin
Maharashtra Metro Project (2023)
250-worker G+1 labour colony completed in 40 days. Included dormitory blocks, canteen, and first-aid centre. Client reported 20% improvement in worker retention versus previous tin shed arrangements.
Odisha Steel Plant Expansion (2022)
Mixed prefab labor hutments (180 labour beds + 12 staff units) with integrated canteen. Repeat order placed for phase 2, demonstrating the comfortable and safe stay our units provide.
Rajasthan Solar Park (2024)
80-technician container-based temporary housing with enhanced dust seals and heat-proofing. Quick installation enabled project mobilisation 3 weeks ahead of schedule — unlimited possibilities with modular design.
Comparison with Other Prefab Options
| Product | Primary Use | Key Difference |
|---|---|---|
| Labour Hutments | Worker dormitories | Bunk-optimised, hygiene-focused |
| Container Offices | Site administration | Partition-heavy, furniture-ready |
| Portable Toilets | Sanitation | Standalone FRP units |
| PEB Warehouses | Material storage | Large-span, open layouts |
Benefits of sourcing from one location: uniform quality, faster coordination, consistent aesthetics. Consider integrated site packages combining all elements.
Regulatory Compliance, Safety Norms & Quality Assurance
Standards Compliance
- BOCW Act requirements for worker housing
- NBC 2016 fire safety and egress norms
- IS 456/800/875 structural standards
- Client-specific HSE requirements
Quality Assurance Includes
- Raw material inspection and UT testing for welds
- Factory-stage QA with panel fire/load certifications
- Site-stage QC during erection
- Complete documentation: drawings, test certificates, O&M manuals
How to Specify & Order Prefabricated Labour Hutments
To receive an expertly designed, customizable quotation, provide:
- Required bed count and bunk configuration (single/double/triple)
- Number of floors needed (G, G+1, G+2)
- Project duration and expected occupancy date
- Site location, climate zone, land availability
- Panel thickness preference and MEP load requirements
Early engagement with our engineering team optimises layouts and reduces costs by 10–15%. Include future expansion or relocation needs in initial discussions to maximise asset utilisation.
Why Work with Portable Office Cabin
Frequently Asked Questions
Contact Portable Office Cabin
Ready to discuss your prefabricated labour hutments requirements? Share your project location, required bed count, and preferred timeline. Our engineering team provides preliminary layout suggestions within days of receiving inputs.
