Cargo Storage Containers
Complete guide to cargo storage containers in India — standardized steel boxes for intermodal freight, on-site storage, modular offices, labour colonies, and prefab buildings. 20 ft, 40 ft, and high cube units in new, used, and converted configurations.
- Brand
- Portable Office Cabin
- Application
- Material & equipment storage, warehousing, logistics, site stores & secure on-site storage
- Steel Grade
- MS CR Sheet / CRCA Sheet — IS 513 & IS 2062 · Corten · ISO-Grade
- MSME Certified
- UDYAM-TN-11-0068545
* Price may vary based on customization and delivery location
Key Features
- Corten steel construction with self-passivating rust patina
- ISO 668 and ISO 1496 compliant for global intermodal transport
- CSC plate with unique BIC code and weight certifications
- Twist-lock corner fittings for stacking and crane handling
- 28 mm marine plywood flooring with cross-member support
- Available in GP, HC, open top, flat rack, reefer, and tank configurations
- Convertible to offices, homes, cafés, labour colonies, and security cabins
- PAN-India delivery with crane positioning and grout foundations
Specifications
| 20 ft GP External | 6.058 m L × 2.438 m W × 2.591 m H |
| 40 ft GP External | 12.192 m L × 2.438 m W × 2.591 m H |
| 40 ft HC Height | 2.896 m (9'6") — +30.5 cm over standard |
| 20 ft Internal Volume | ~33 m³ (1,172 cu ft) |
| 40 ft Internal Volume | ~67 m³ (2,390 cu ft) |
| Steel Type | Corten (ASTM A588), Mild Steel (IS 2062), Stainless (AISI 304/316L) |
| Floor | 28 mm marine-grade plywood over cross-members |
| Corner Fittings | ISO 1161, 300-ton lifting capacity |
| Stacking | 192,000–216,000 kg MSM (9-high on vessels) |
| Standards | ISO 668, ISO 1496, CSC 1972 |
Cargo Storage Containers: The Complete Guide for Indian Buyers
Cargo storage containers are standardized steel boxes originally designed for intermodal freight transport—moving seamlessly between ships, rail, and trucks without unloading cargo. Today, these robust units serve dual purposes across India: as workhorses of global logistics and as cost-effective foundations for on-site storage, modular offices, labour colonies, and prefab buildings.
The modern shipping container evolved from post-World War II innovations, eventually standardized under ISO frameworks in the 1960s. These containers adhere to strict ISO specifications, including uniform widths of 2.438 metres (8 feet), standard heights of 2.591 metres (8 feet 6 inches), and high cube variants reaching 2.896 metres (9 feet 6 inches). The most common types—20-foot and 40-foot units—dominate both container transport networks and the secondary market for storage applications.
Key Characteristics of Cargo Storage Containers
- Constructed from corten steel (weathering steel), mild steel with protective coatings, or stainless steel for specialized applications
- Each unit carries a CSC plate with unique ISO 6346 BIC code, maximum gross weight, tare weight, and validity period
- Designed for stacking via twist-lock fittings at corner castings, enabling efficient space utilization
- Standard sizes fit vessel bays, rail wagons, and truck chassis—reducing handling costs by up to 90%
Why This Matters for Indian Buyers
- • Major ports like JNPT, Mundra, and Chennai serve as primary sources for new and used containers
- • Domestic market emphasizes used units for cost-effective on-site applications amid infrastructure boom
- • Portable Office Cabin repurposes containers into storage, offices, labour accommodation, and prefab buildings
Standard Cargo Storage Container Sizes & Specifications
The dominance of 20-foot and 40-foot general purpose containers stems from their optimization for global shipping economics. In India, these two sizes account for over 85% of the storage container market.

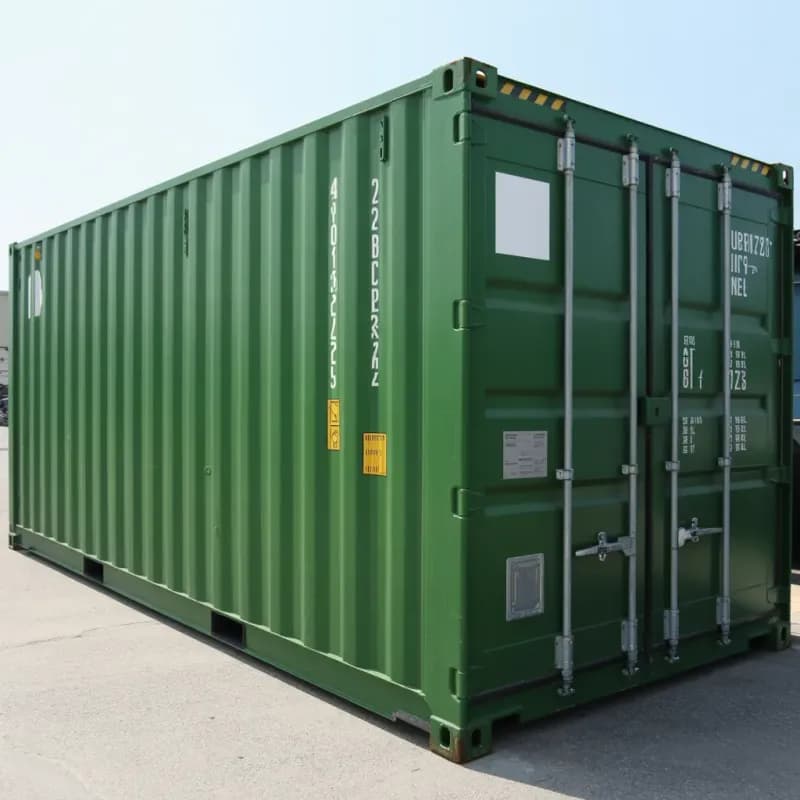

20 ft GP Container
- External: 6.058 m × 2.438 m × 2.591 m
- Volume: ~33 m³ (1,172 cu ft)
- Tare: 2,200–2,400 kg
- Payload: 28,000–30,480 kg
- Door: 2.343 m W × 2.280 m H
- Ideal for: Site storage, portable offices, security cabins

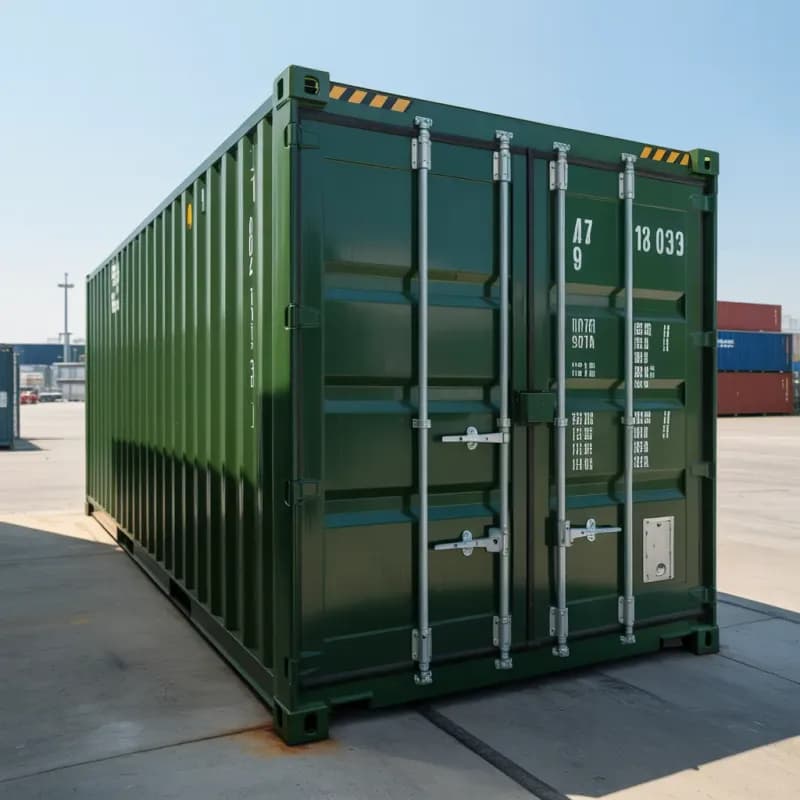

40 ft GP Container
- External: 12.192 m × 2.438 m × 2.591 m
- Volume: ~67 m³ (2,390 cu ft)
- Tare: 3,700–3,900 kg
- Payload: 26,000–28,000 kg
- Ideal for: Warehousing, labour colonies, equipment storage
40 ft HC Container
- External height: 2.896 m (9'6")
- Internal height: ~2.69–2.70 m
- Extra: +30.5 cm over standard
- Ideal for: Vertical storage, container offices, homes, cafés
Specialized Sizes in the Indian Market
- • 10 ft containers (2.991 m L): Urban constraints and tight site plots
- • 45 ft pallet-wide: 2.5 m internal width for Euro-pallet compatibility
- • 53 ft containers: North American domestic standard (rare in India)
- • Half-height (1.219–1.346 m H): Dense bulk cargo like minerals and ore
Condition Grading for Cargo Containers
New (One-Trip)
Pristine condition, full corten finish, CSC validity of 5 years
Cargo-Worthy
CSC-approved for continued sea transport, minor wear acceptable
Wind & Water-Tight (WWT)
Minor dents permissible, suitable for static storage
AS IS
Structural repairs needed, priced accordingly
Used containers—specifically second hand shipping container units—comprise 80–90% of India's secondary market. These offer significant cost savings but require careful inspection for frame twist, floor rot, and corrosion.
Types of Cargo Storage Containers by Use
General Purpose (Dry)
Fully enclosed double-door steel box with EPDM seals. Handles 90% of global non-perishable trade. Excellent for on-site storage of tools, cement, electronics, and textiles.
High Cube
15% more internal volume than standard units. Additional headroom makes them ideal for container office conversions and container homes with ceiling heights exceeding 2.5 metres.
Open Top
Removable tarpaulin roofs for crane loading of over-height cargo like turbines and heavy machinery reaching heights up to 2.7 metres.
Flat Rack
Collapsible end walls with open sides, rated for 40-ton point loads. Transport vehicles, steel coils, excavators via slings or chains.
Double Door & Open Side
Access from both ends or full side access. Speeds loading/unloading by 30–50% in confined depots. Ideal for warehousing and pop-up retail.
Reefer (Refrigerated)
Precise temperature control from -30°C to +30°C with ±0.25°C accuracy. Vital for pharmaceutical and frozen food exports.
Materials & Construction: Mild Steel, Corten Steel, Stainless Steel
Container longevity depends heavily on steel grade and protective coatings. Corrugation profiles on side walls (7–11 waves per side) enhance buckling resistance. Floors consist of 28 mm thick marine plywood over cross-members, while corner posts per ISO 1161 allow 300-ton lifting capacity.
Corten (Weathering) Steel
- • ASTM A588/A606, 355 MPa yield strength
- • Self-passivating: forms 50–100 μm protective rust patina
- • Corrosion rate: 0.1–0.2 mm/year vs 0.5 mm/year for uncoated mild steel
- • Ideal for coastal environments — Mundra, Chennai ports
Mild Steel (IS 2062 Grade B)
- • 250 MPa yield strength, 20–30% cost savings over corten
- • Requires epoxy primers + polyurethane topcoats (150–200 μm DFT)
- • 15–20 year lifespan with proper maintenance
- • Common for inland storage and prefab applications
Stainless Steel (AISI 304/316L)
- • 500+ MPa yield, PREN >24 for 316 grade
- • 2–3x cost of corten steel
- • Used for food processing, pharmaceuticals, chemicals
New vs Used Cargo Storage Containers & Typical Price Ranges (India, 2024–2026)
New containers from Chinese mills offer pristine CSC validity (5 years), zero dents, and 30+ year service life—but cost 50–100% more than used units. Used (WWT, 5–15 years old) containers dominate at 70–80% savings.
| Container Type | Price Range (₹) | Notes |
|---|---|---|
| 20 ft Used GP | ₹90,000–₹1,40,000 | Based on 2015–2020 build year, CSC status, rust grade |
| 40 ft Used GP | ₹1,40,000–₹2,10,000 | Condition-dependent, vary depending on source port |
| 40 ft HC Used | ₹1,60,000–₹2,30,000 | Premium for extra height, popular for conversions |
| 40 ft Working Reefer | ₹3,00,000–₹5,00,000 | Functional plug-in genset, compressor 13.5E class |
| DNV 2.7-1 Offshore (10–20 ft) | ₹2,50,000–₹4,00,000 | Blast-proof certifications |
Factors Affecting Price
• Steel grade and manufacturer origin
• Age (manufacture year on CSC plate)
• Prior usage: marine versus domestic
• Modification level and IICL grading (A–D)
• Steel prices (currently ₹60–80/kg)
• Post-2024 Red Sea disruptions added ~20% premiums
Pricing subject to market fluctuations. Industry forecasts suggest 10–15% price increases by end of 2026.
From Cargo Storage to Modular Buildings: Solutions by Portable Office Cabin
Repurposing extends container life by 20–30 years in static applications. Portable Office Cabin transforms GP and HC units through frame-preserving cuts (laser-guided), welding reinforcements per IS 800, and comprehensive fit-outs.
Container Offices
20 ft and 40 ft containers converted into plug-and-play site offices with partition walls, false ceilings, LED lighting, split AC, and executive desking. Deployed on metro rail, highway EPC, and real estate sites.
Prefab Labour Colonies
Integrated worker accommodation with dormitories (100+ beds, 2–3 high stacking), dining halls, canteens, and sanitary blocks. Deployed at power plants and industrial parks.
Container Homes & Cafés
High cube conversions with architect-designed layouts, floor-to-ceiling glazing, solar rooftop integration, and mezzanine levels. Popular for urban pop-ups and resort accommodation.
Security Cabins & Rooftop Sheds
Compact 10–20 ft modules for factory gates, toll plazas, and events. Rooftop structures combined with PEB framing add 50–100 m² usable space.
End-to-End Service by Portable Office Cabin
Design & Engineering
AutoCAD/STAAD structural analysis, CNC plasma cutting
Delivery & Installation
PAN-India delivery, hydraulic ramps, crane positioning, grout foundations
Quality & Compliance
10,000+ projects, ISO 9001 quality management, NBC fire safety
Key Technical Standards, Safety & Security
ISO 668 & ISO 1496 Standards
- • External dimensions: +0/-6.35 mm tolerance (20 ft), +0/-9.5 mm (40 ft)
- • Racking load: 82 kN/m
- • Stacking: MSM of 192,000–216,000 kg
- • Lifting: 300 tons per corner fitting
- • Containers stack 9-high on ships without deformation
CSC Plates
- • Unique container number (ISO 6346 BIC code)
- • Maximum gross weight, tare weight
- • Re-approval every 30 months for transport use
- • Verifies no fatigue cracks from 500,000+ ocean cycles
Security Options for Storage
- • High-security lock boxes welded over lock rods
- • CISA EN12320 padlocks (shackle >16 mm)
- • Internal locking bars and anti-theft grills (50×50 mm mesh)
- • IoT-enabled CCTV for yard monitoring
Structural Modifications for Buildings
- • Engineer-stamped drawings for cutouts
- • Doubler plates (6–10 mm) reinforcing openings
- • Ventilation: minimum 200 CFM
- • RCCB 30mA earth leakage breakers
- • NBC fire safety compliance
Applications in Indian Industry & Infrastructure
India's ₹5,000 crore prefab sector continues growing at approximately 20% CAGR, driven by versatile container applications.

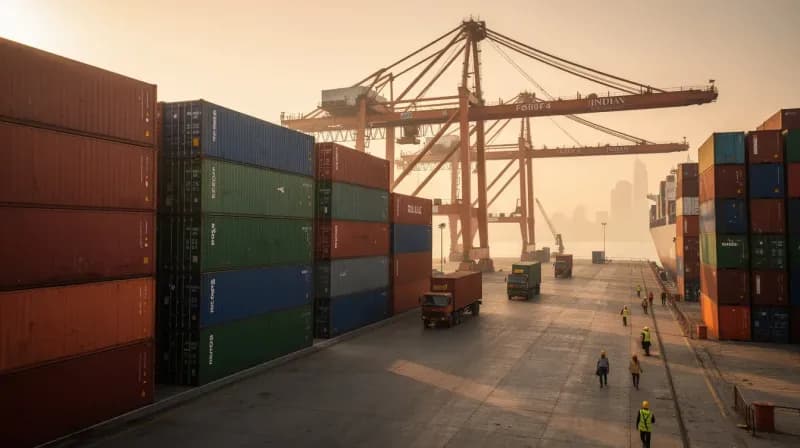

Ports & Logistics
Stacked storage at JNPT, Mundra, Chennai — 10+ high stacking for throughput exceeding 1 million TEUs annually.
Construction & Infrastructure
Site storage for cement, steel, MEP equipment. Temporary offices, testing labs, and worker accommodation near highways and metro rail projects.
Education & Corporate
Temporary classrooms, training rooms, libraries, corporate office extensions, and conference facilities.
Industrial & Warehousing
Secure storage for spare parts, hazardous goods with proper ventilation, inventory overflow, and maintenance workshops.
Government & NGO
Emergency shelters, mobile clinics, disaster-relief depots, temporary housing, and administrative offices in remote areas.

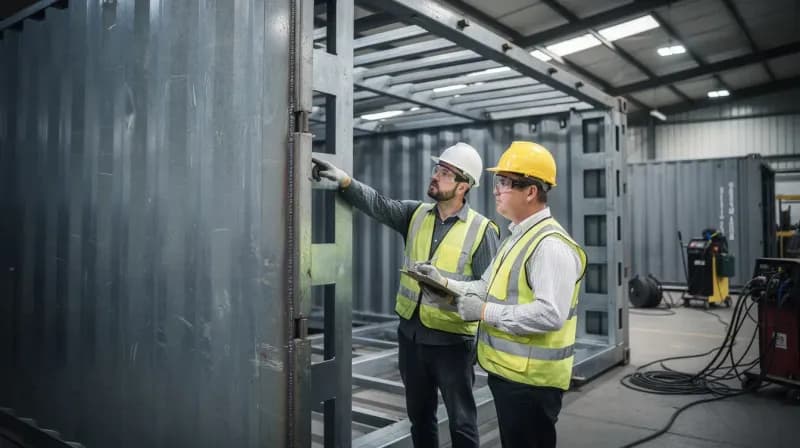

Buying Checklist & Maintenance Tips
Key Inspection Points
- Structural integrity: Check bent corner posts, twisted frame, heavy impact signs
- Corrosion: Heavy rust (>10% surface) indicates weakness — use ultrasonic gauging
- Roof: Inspect for pinholes, dents, standing water marks
- Doors: Should open/close smoothly; check seal compression
- Floor: Marine plywood — no delamination (<5%), rot, or pest damage
- Verify CSC plate and manufacture date (post-2010 preferred)
Recommended Grade by Application
| Export / International shipping | Cargo-worthy (CSC valid) |
| Static storage on-site | Wind & water-tight (WWT) |
| Offices and accommodation | Refurbished with modifications |
| Short-term / budget use | AS IS — inspect carefully, assess repair costs |
Basic Maintenance Tips
- • Annual repainting with epoxy coating (80 μm minimum)
- • Lubricate hinges and lock rods with lithium EP2 grease
- • Roof inspection after each monsoon season
- • Pest control for timber floors (permethrin-based)
- • Clear drainage around container base
Ready to Source Your Cargo Storage Containers?
Whether you need raw containers for storage, converted modular buildings, or complete prefab solutions, Portable Office Cabin delivers end-to-end services across India with 10,000+ completed projects.
