Steel Portable Cabin
Factory-built steel cabins for site offices, staff rooms, security posts and worker housing — delivered ready to use anywhere in India. The whole cabin is built in our factory — welded MS frame, insulated walls, sloping roof, flooring, wiring, doors and windows — then loaded onto a truck and placed on your site, so most customers are working inside it the same day it arrives. A steel cabin takes monsoon rain, dust, forklifts brushing past and repeated crane lifts in its stride; with a proper primer and topcoat the frame and walls last 15 to 20 years or more on basic maintenance. When one site finishes, the same cabin goes on a truck to the next one.
- Brand
- Portable Office Cabin
- Application
- Construction site offices, security cabins, on-site accommodation, ticket counters, retail kiosks & temporary offices
- Steel Grade
- MS CR Sheet / CRCA Sheet — IS 513 & IS 2062 · Corten · ISO-Grade
- MSME Certified
- UDYAM-TN-11-0068545
Transport & installation charges calculated at checkout based on delivery pincode.
- SIZE
- 20 ft × 10 ft × 8.5 ft (200 sq ft)
- RANGE
- Portable Cabins
- DELIVERY
- 7–21 Working Days
- FRAME / MATERIAL
- Welded MS Frame, 1.5–2 mm MS Sheet, 30–50 mm Insulation
- BRAND
- Portable Office Cabin
- BEST FOR
- Site Offices, Staff Rooms & Security Posts
Key Features
- Built complete in the factory — frame, walls, roof, floor, wiring, doors and windows
- Takes site conditions: monsoon rain, dust, knocks and repeated crane lifts
- Relocatable — the same cabin moves from site to site across a decade of projects
- 30–50 mm wall and roof insulation, so air conditioning actually works inside it
- Fixed price and a fixed delivery window — no site delays, no surprises in the bill
- Customisable: partitions, attached toilet or pantry, extra doors, windows and G+1 stacking
- Checked for square, weld quality, wiring and water-tightness before it leaves the factory
Specifications
| Priced Configuration | 20 ft × 10 ft × 8.5 ft — 200 sq ft |
| Structural Frame | Welded MS C-channel 75 × 40 mm or RHS 50 × 50 × 3 mm, galvanised C and Z purlins |
| Wall Panels | 1.5–2 mm MS sheet outside, 30–50 mm glass wool or rock wool insulation, interior finish sheet |
| Roof | Sloping insulated MS roof with EPDM waterproofing |
| Flooring | 18 mm cement board base with 2 mm vinyl finish |
| Windows | Aluminium sliding 3 × 4 ft, tinted glass, mosquito mesh on request |
| Doors | MS flush door 3 × 7 ft with lock, handle and stopper |
| Electricals | 6–10 points per 200 sq ft, concealed wiring, MCB board, LED lights, modular switches |
| Paint System | Epoxy zinc phosphate primer + PU topcoat, in the colour of your choice |
| Standard Sizes Built | 10 × 8, 20 × 8, 20 × 10, 30 × 10 and 40 × 10 ft |
| Expected Life | 15–20+ years with basic maintenance |
| Door-to-Door Lead Time | 7–21 working days — 7–15 dispatch, plus transit to your pincode |
A Site Office That Arrives Finished
If you have ever waited three months for a brick-and-mortar site office, you already know why steel portable cabins exist. We build the whole cabin in our factory — frame, walls, roof, floor, wiring, doors and windows — then load it onto a truck and place it on your site. Most of our customers are working inside it the same day it arrives.
Portable Office Cabin manufactures steel cabins at our Tamil Nadu factory in Kamandoddi, near Hosur, with a Bangalore office in Electronic City for sales and support. We are ISO 9001:2015 certified and MSME registered, and we have supplied everything from a single guard cabin to full labour colonies for infrastructure projects. This page covers what goes into our steel cabins, the sizes we keep ready, what drives the price, and how to decide whether steel is the right choice for you.
Why Choose a Steel Portable Cabin
There are three reasons people keep coming back to steel.
It survives the site
A steel cabin does not care about monsoon rain, dust, a forklift brushing past it, or being lifted by a crane for the fourth time. With a proper primer and topcoat, the frame and walls last 15 to 20 years or more on basic maintenance.
It moves with your projects
When one site finishes, the cabin goes on a truck to the next one. Plenty of our customers have moved the same cabin four or five times over a decade. You are buying an asset, not a temporary arrangement.
It is fast and predictable
Because everything is done in the factory there are no site delays, no waiting for masons and no surprises in the bill. You get a fixed price, a fixed delivery window and a cabin that looks exactly like the one you approved.
What Goes Into the Cabin
We get asked “what steel do you use?” a lot. The full component list is in the specification table above; here is why each part is what it is.
- The frame carries everything. Welded MS C-channel (75 × 40 mm) or RHS (50 × 50 × 3 mm) with galvanised C and Z purlins. It is one rigid welded box, which is what lets the cabin be craned off a trailer repeatedly without racking.
- The walls do the temperature work. 1.5–2 mm MS sheet outside, 30–50 mm of glass wool or rock wool, then an interior finish sheet. The insulation is the difference between a steel box and a room you can air-condition.

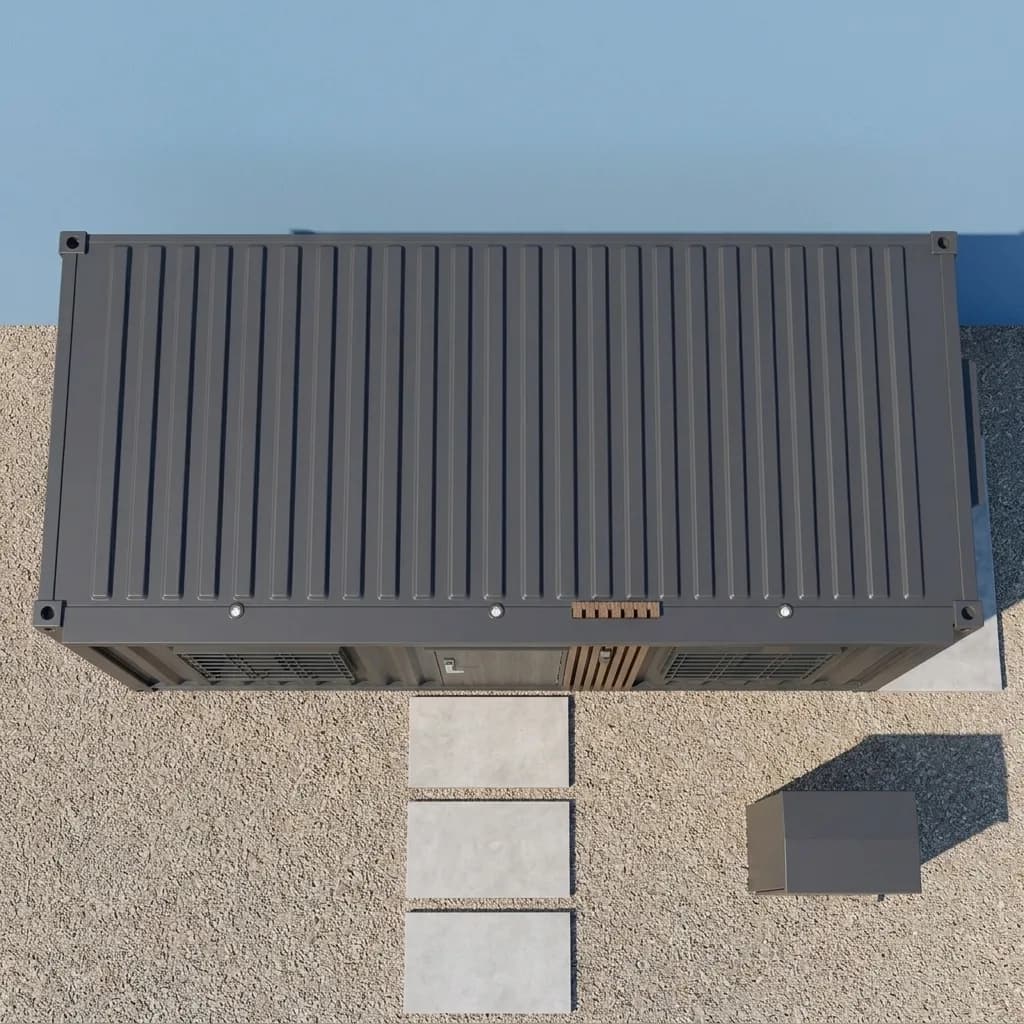

- The roof sheds water instead of holding it. A sloping insulated MS roof with EPDM waterproofing. Flat roofs pond, and ponding is where leaks and rust start.
- The floor takes site boots. An 18 mm cement board base with a 2 mm vinyl finish — mops clean, does not dust up, and does not flex under a filing cabinet.
- Openings are standard sections, not specials. Aluminium sliding windows at 3 × 4 ft with tinted glass (mosquito mesh on request) and an MS flush door at 3 × 7 ft with lock, handle and stopper. Standard sizes mean spares are available anywhere in India.
- Electricals arrive done. 6–10 points per 200 sq ft, concealed wiring, an MCB board, LED lights and modular switches. You connect one incoming line.
- Paint is the whole corrosion story. Epoxy zinc phosphate primer under a PU topcoat, in your colour. Skipping the primer is how a cheap cabin ends up rusting in its second monsoon.
Every cabin is checked for square, weld quality, wiring and water-tightness before it leaves the factory.
Sizes We Keep Ready
These are the sizes we build most often, so they ship fastest. Anything else is built to order. The 20 × 10 ft build is the one priced on this page.
| Size (L × W × H) | Floor area | Works well as |
|---|---|---|
| 10 × 8 × 8.5 ft | 80 sq ft | Security cabin, ticket counter, small store |
| 20 × 8 × 8.5 ft | 160 sq ft | 2–4 person site office |
| 20 × 10 × 8.5 ftPriced here | 200 sq ft | 4–6 person manager’s office or meeting room |
| 30 × 10 × 8.5 ft | 300 sq ft | Office with attached pantry or toilet |
| 40 × 10 × 8.5 ft | 400 sq ft | 8–12 person bunkhouse or open-plan office |
Need something different — a partitioned office, an attached toilet block, a G+1 stacked unit? Tell us what you need and we will draw it up.
What the Price Covers
The steel cabin listed on this page is sold at the single price shown at the top of the page, inclusive of 18% GST. That price covers the frame, insulated walls and roof, flooring, one door, two windows and the full electrical fit-out of the 20 × 10 ft build.
Transport is calculated from your delivery pincode at checkout. On-site installation and positioning — levelling the base, placing the unit and handover, with crane or hydra charges included for a standard single-unit placement — is a separate optional line item you can add there. Both are shown before you pay. Other sizes and specifications are quoted separately: what moves the figure is size, sheet thickness, insulation thickness, the number of doors and windows, and extras such as AC provision, a false ceiling or an attached toilet.
Send us your size and location and we will usually come back with a drawing and a fixed quote the same working day. You can also order the standard build directly online with UPI, cards or net banking, secured by Razorpay.
Where Steel Portable Cabins Are Used
Our steel cabins are working right now as:
If your use case is not on this list, it probably still works — the cabin is a steel shell that we fit out to suit whatever you are doing inside it.
Steel Cabin, Container Office or PUF Cabin?
This is the question we help customers with most, so here is the honest comparison. We build all three, so none of this is a pitch for one against another.
Steel portable cabin — this page
A purpose-built welded MS frame with insulated steel walls. Best value for offices, security cabins and accommodation where you want proper insulation without paying container prices, and the easiest of the three to customise — any door, window or partition layout you like, and 10 ft widths a container module cannot give you. Our MS portable cabin page covers the same build from the material side.
Steel office container
Container-form units on an ISMC/RHS structural steel frame, clad in 1.2–1.6 mm MS or galvanised sheet with 40–60 mm insulation, in 10, 20, 30 and 40 ft lengths. Choose it when you want the container footprint and finish, or when you need to stack — it is built for G+1 and G+2 configurations with a staircase. The layout is more constrained by the container module than a purpose-built cabin. See the steel portable office container page.
PUF panel cabin
The same steel frame, but the walls are factory-made PUF sandwich panels. The best choice if the room will be air-conditioned all day — a clinic, a control room, an executive office through a Chennai summer — because a sealed foam core holds temperature in a way sheet-and-wool walls do not. Our MS sheet vs PUF panel comparison goes through it in detail.
Not sure? Send us a photo of the site and a line about how the cabin will be used, and we will tell you which one we would buy.
What You Need on Site Before Delivery
Very little. A level base — compacted ground, a PCC bed or concrete blocks at the corners — is enough. We need truck access for a 20 or 40 ft trailer and a clear spot for the crane or hydra to set the cabin down. Once placed, you connect a single power line and the cabin is ready. Water and drainage connections apply only if you have chosen an attached toilet or pantry.
We deliver across India. Dispatch from the factory is 7 to 15 working days depending on size and customisation; door to door, allow 7 to 21 working days once transit to your pincode is added. Freight is calculated from that pincode at checkout.
Frequently Asked Questions
Related Products
Talk to Us
Send us your size, location and what the cabin is for, and we will come back with a drawing and a fixed quote — usually the same working day. Or order the standard build online and we will schedule the dispatch.
Monday to Saturday, 7 AM to 10 PM. ISO 9001:2015 certified and MSME registered, with manufacturing at our Tamil Nadu factory in Kamandoddi, near Hosur.
