Portable Steel Office Container – 10ft to 40ft Stackable G+1
Steel portable office container built from ISMC/RHS structural steel framing with 1.2–1.6 mm MS or GI cladding. Available in 10 ft, 20 ft, 30 ft, and 40 ft lengths. Factory-fitted electricals, PUF/EPS/rock wool insulation (40–60 mm), and modular furniture. Deploys in 7–15 days with 1–2 day onsite placement. Reusable for 8–10 project cycles with 10–25 year service life.
* Price may vary based on customization and delivery location
Key Features
- ISMC/RHS structural steel framework — IS 800 compliant
- PUF/EPS/rock wool insulation for Indian climate extremes
- Factory-fitted electricals with MCB panel and LED lighting
- 1.5-ton split AC provision maintaining 24–28°C indoors
- Stackable G+1 and G+2 configurations with staircase
- Modular partitions for cabins, meeting rooms, and open-plan layouts
- 30–50% cost savings over brick-and-mortar site offices
- Reusable for 8–10 project cycles — 40–60% less embodied carbon
- Pre-dispatch quality: ultrasonic weld testing, rain leakage testing
- ACP facade and branding customization available
Specifications
| Frame Material | ISMC / RHS structural steel |
| Cladding | MS or galvanized steel sheets, 1.2–1.6 mm thickness |
| Wall Insulation | PUF, EPS, glass wool, or rock wool — 40–60 mm |
| Floor | Steel frame base with marine plywood/cement board + vinyl/PVC flooring |
| Roof | Insulated panels with slope for rainwater drainage |
| Sizes Available | 10 ft, 20 ft, 30 ft, 40 ft lengths; 8.5–9.5 ft height |
| Weight (20 ft) | 2000–2200 kg empty |
| Design Life | 10–25 years with periodic maintenance |
| Electrical | Factory-fitted copper wiring, MCB panel, 6–12 LEDs, 15A sockets |
| Delivery | 7–15 working days; 1–2 days onsite placement |
Steel Portable Office Container – Prefabricated Workspaces for Rapid Deployment
A steel portable office container is a prefabricated workspace built from structural steel framing and cladding, designed for rapid deployment on construction sites, industrial yards, and urban plots across India. These units evolved from repurposed ISO shipping containers in the early 2000s when infrastructure booms like the Golden Quadrilateral highways demanded quick-deployable site offices. Today, they represent a mature, purpose-built segment of the modular construction industry.
Consider the 20-foot steel portable office container commonly deployed on Mumbai metro rail projects — externally measuring approximately 20x8x8.5 feet and yielding about 160 square feet internally. These units serve as manager cabins with partitioned staff areas. On larger NH projects in Maharashtra or industrial parks in Gujarat, 40-foot variants (around 320 square feet) accommodate 6 to 10 workstations plus conference zones, delivered ready-to-use with factory-fitted electricals, insulation, and furniture.
Key Benefits
Speed
Complete prefabrication in 7–15 days; 1–2 days onsite placement
Cost Control
₹900–1500/sq ft versus ₹2000+ for masonry — no overruns
Reusability
Same units serve 8–10 project cycles, reducing embodied carbon by 40–60%
Durability
Anti-corrosive coatings handle harsh coastal humidity and industrial environments
Standard Sizes & Configurations
Our modular portable office cabin range follows ISO container standards for compatibility with flatbed trailers and crane handling, while maximizing internal usable space.
| Size (L x W x H) | Typical Use | Approx. Occupancy |
|---|---|---|
| 10' x 15' x 8.5' | Security posts, compact admin | 2–4 people |
| 10' x 20' x 8.6' | Single cabin, manager + staff | 4–6 people |
| 10' x 30' x 10' | Mid-sized admin block | 6–8 people |
| 10' x 40' x 8.6' | Open-plan office with meeting area | 8–12 people |

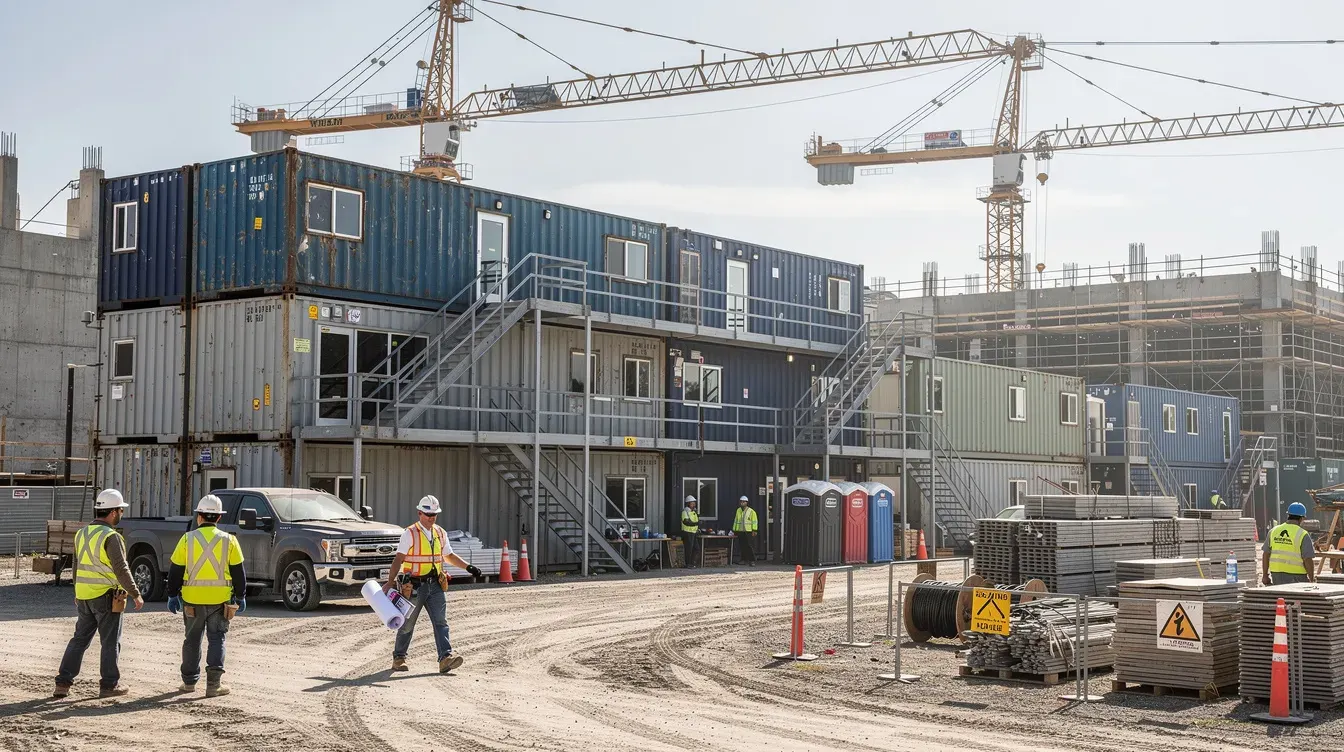

We configure containers as single cabins, double cabins, manager's cabin plus staff area, meeting rooms, or open-plan work station layouts. For tight urban plots or large infrastructure projects, we stack containers G+1 or G+2 with proper staircase and railing design.
Popular Container Office Layout Examples
20 ft Compact Office
- • 2 workstations (each 4x2 feet)
- • 1 manager desk (6x4 feet)
- • Compact storage racks
- • Wall-mounted split AC unit
- • Suits project engineers and site supervisors
40 ft Team Office
- • 6–10 workstations in rows with 3-foot aisles
- • 10x8 foot conference nook seating 6 people
- • Vertical file racks along walls
- • Supports highway, metro, and real estate project teams
Technical Specifications & Construction Details
Portable Office Cabin uses structural steel framework constructed from ISMC (Indian Standard Medium Channel) or RHS (Rectangular Hollow Section) for the chassis and walls. The exterior cladding consists of mild steel or galvanized steel sheets in 1.2–1.6 mm thickness.
- Wall Insulation: PUF, EPS, glass wool, or rock wool in 40–60 mm thickness
- Floor: Steel frame base with marine plywood or cement board, topped with vinyl or PVC flooring
- Roofing: Insulated panels with slope for rainwater drainage — monsoon-ready
- Weight: 2000–2200 kg empty for standard 20 ft units
- Design Life: 10–25 years with periodic maintenance
- Electrical: Factory-fitted copper wiring, MCB panels, 6–12 LED lights, 15A AC sockets

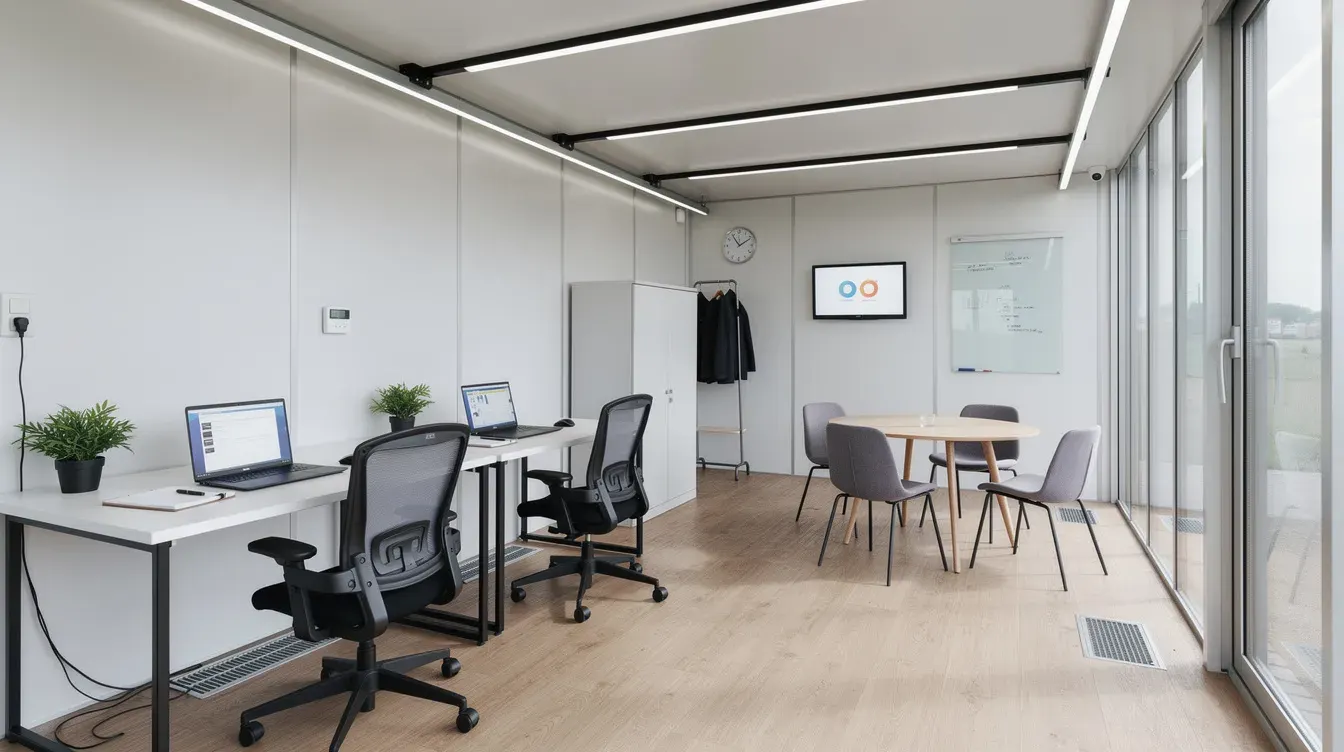

Door, Window & Interior Finish Options
Doors
- • 36x80 inch steel doors with mortise locks
- • Reinforced 2 mm steel doors for secure storage/cash handling
Windows
- • Powder-coated aluminium sliding windows (3x4 ft)
- • MS grills for security cabin applications
Wall Finishes
- • Laminated MDF or particle board
- • PVC wall panels or gypsum board
Ceiling
- • Modular false ceiling with 600x600 mm tiles
- • Clean professional appearance
Flooring
- • Vinyl flooring for construction environments
- • Acoustic panels for education use
Furniture
- • Workstations (1200x600 mm)
- • Steel storage cabinets, conference tables
Applications of Steel Portable Office Containers
Construction Site Offices
40 ft site offices on NH projects housing project managers and engineers
Industrial Plant Offices
Admin cabins for logistics yards and warehouse operations with server provisions
Temporary Campus Offices
Schools and colleges using container solutions during expansion phases
Corporate Sales Offices
Marketing suites and site booking offices for real estate developers
Security Office Containers
Guard rooms at townships, industrial parks, and toll plazas
Control Rooms
Utility projects — water treatment plants and solar parks with fire-rated panels
We extend the same technology to container homes, labour colonies, prefab canteens, container cafés, portable toilets, and rooftop offices — providing complete site infrastructure solutions.
Specialized Steel Container Solutions
Steel portable conference room cabins with AV provisions and 50 dB sound insulation
Container-based training rooms and classrooms with whiteboards and projector mounts
Modular steel control rooms with fire-rated sandwich panels and dedicated server areas
MS portable office units with reinforced security features for cash handling or record storage
Comfort & Productivity Features
Thermal Comfort
Insulated walls and roof support 1.5-ton split ACs, maintaining 24–28°C indoors even when exterior temperatures exceed 40°C in North and Central India.
Acoustic Comfort
Insulation and sealed doors reduce outside noise from construction machinery to 40–50 dB levels suitable for concentrated office work.
Pricing Range & Cost Factors
| Container Type | Price Range (Indicative) | Price per Sq Ft |
|---|---|---|
| Compact 10'x10' or 10'x15' GI portable office cabin | ₹1,10,000 – ₹1,80,000 | ₹900–1200 |
| 20 ft steel office container (basic to insulated) | ₹1,60,000 – ₹2,40,000 | ₹1000–1500 |
| 40 ft container office (customized multi-room) | ₹3,20,000 – ₹5,50,000+ | Varies |
Key Cost Drivers
- • Steel thickness: 1.6 mm adds 15% over 1.2 mm
- • PUF insulation carries 20% premium over EPS
- • Premium gypsum and modular furniture add 10–15%
- • High-AC configurations add ~₹20,000 to base price
- • Transport logistics: ₹5–10 per km from factory
- • Crane charges at ₹10,000 per day
Cost Optimisation Tips for Buyers
- 1 Standardize sizes across sites (same 20 ft and 40 ft modules) for reuse and simplified logistics
- 2 Decide early whether washrooms integrate into the main cabin or remain separate (₹50,000 savings per unit)
- 3 Opt for functional, durable interiors instead of decorative finishes for construction environments
- 4 Plan for future relocation from design stage — include lifting points and modular partitions
- 5 Consider phased expansion: start with base modules and add units as team size grows
Customization Options & Modular Expansion
External Branding
Company colours, logo vinyls, and ACP facades for premium sales offices and marketing suites
Internal Partitioning
Modular 75 mm panels creating cabins, meeting rooms, reception areas, and storage zones
Secure Zones
Reinforced 2 mm steel doors for server rooms, record storage, or cash handling areas
Extensions
Verandahs, canopies, and external decks using PEB and light steel structures
Modular Expansion
Start with 20 ft module and add more later — connected with common doors or weatherproof passages
Integration
Combines with PEB sheds, prefab labour accommodation, portable toilets, and rooftop installations
Delivery, Installation & Maintenance
Installation Steps
- 1 Site leveling and placement of 4–6 concrete blocks or steel supports

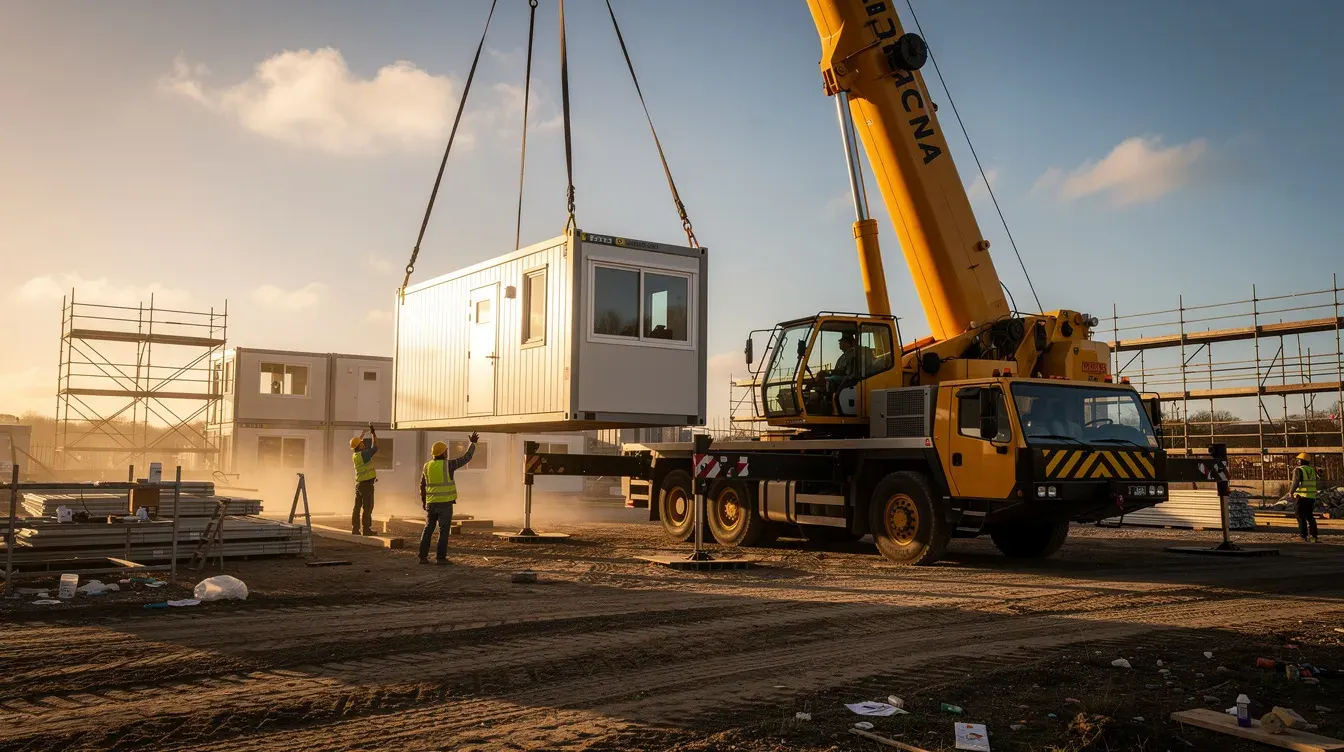

- 2 Crane lifting (20–50 ton capacity) and positioning
- 3 Electrical connection to site supply and plumbing hookup
- 4 Final interior handover with documentation
Maintenance Guidelines
- • Periodic repainting every 3–5 years using epoxy primer and polyurethane topcoat
- • Annual inspection of roof sealants, door locks, and window runners
- • Quarterly electrical fitting checks and pest control for extended deployments
- • Timely sealant replacement maintains weather resistance
- • 20+ years serviceable life with routine maintenance
Compliance, Safety & Quality Assurance
Standards Compliance
- • IS 800 for structural steel design and fabrication
- • IS 732 for electrical installations
- • NBC fire safety norms (1-hour fire rating optional)
Pre-Dispatch Quality Checks
- • 100% ultrasonic testing on critical weld joints
- • Insulation continuity verification (gaps under 2 mm)
- • Door and window alignment checks
- • Leakage testing under simulated rain conditions
