Workmen Accommodation – Prefab Labour Colonies
Prefabricated workmen accommodation — labour colonies, portable camps, and modular dormitory blocks for 50–500 workers. G+1 double-storey designs with PUF insulation, sanitary blocks, kitchens, and dining halls. 20–40% cheaper than RCC with 2–4 week installation across India.
* Price may vary based on customization and delivery location
Key Features

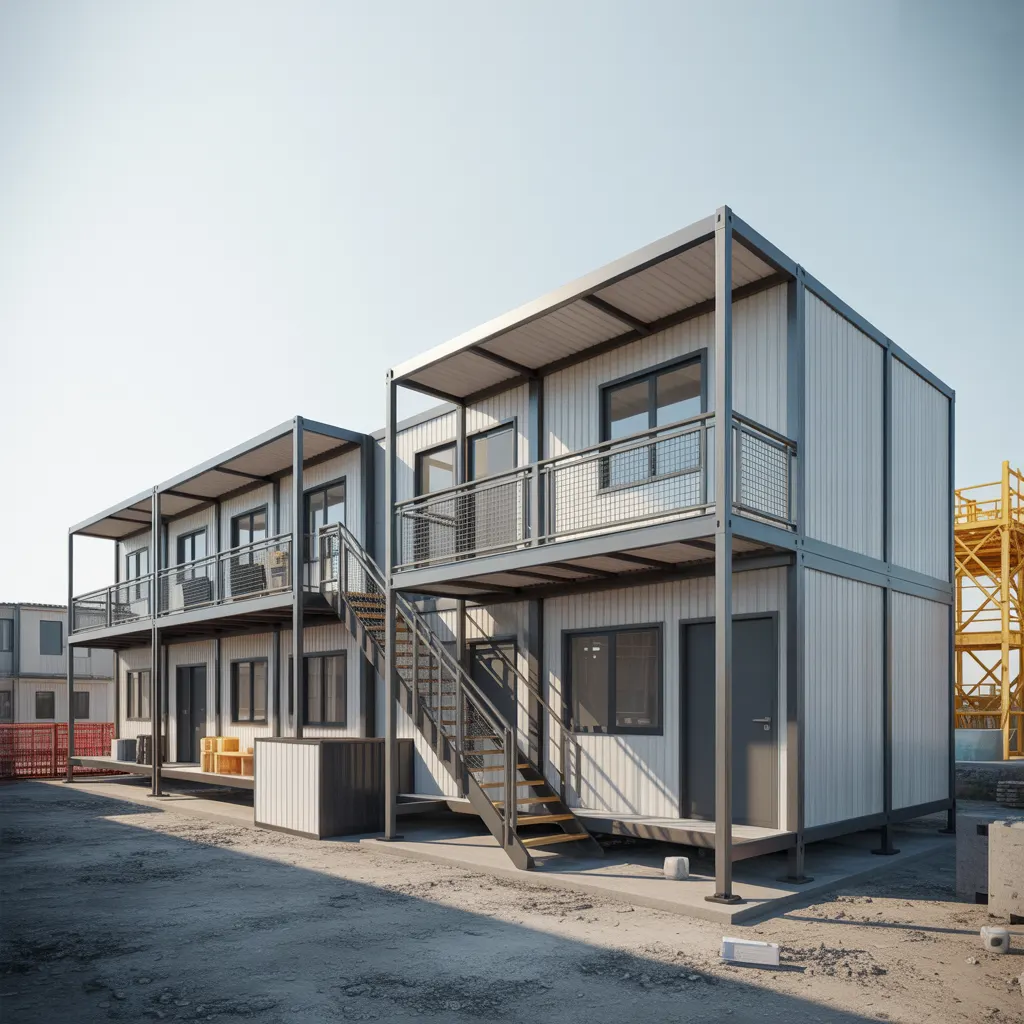

- G+1 double-storey modular colonies for land-constrained urban sites and metro rail projects
- Complete ecosystem — dormitories, kitchens, dining halls, toilets, recreation rooms, security cabins
- 40–60 mm PUF insulation for thermal comfort in hot Rajasthan or coastal Chennai/Mumbai climates
- 20–40% cost savings with ability to relocate entire colonies to new project sites
- Turnkey delivery including bunk beds, mattresses, sanitary fittings, and utility connections
- Compliance with BIS standards, NBC 2016, BOCW Act, and client EHS/ESG audit requirements
- Scalable from 50-bed single-storey to 500+ bed double-storey configurations
- Pan-India delivery across 20+ states with after-sales expansion and relocation support
Specifications
| Capacity Range | 50–500+ workers per colony |

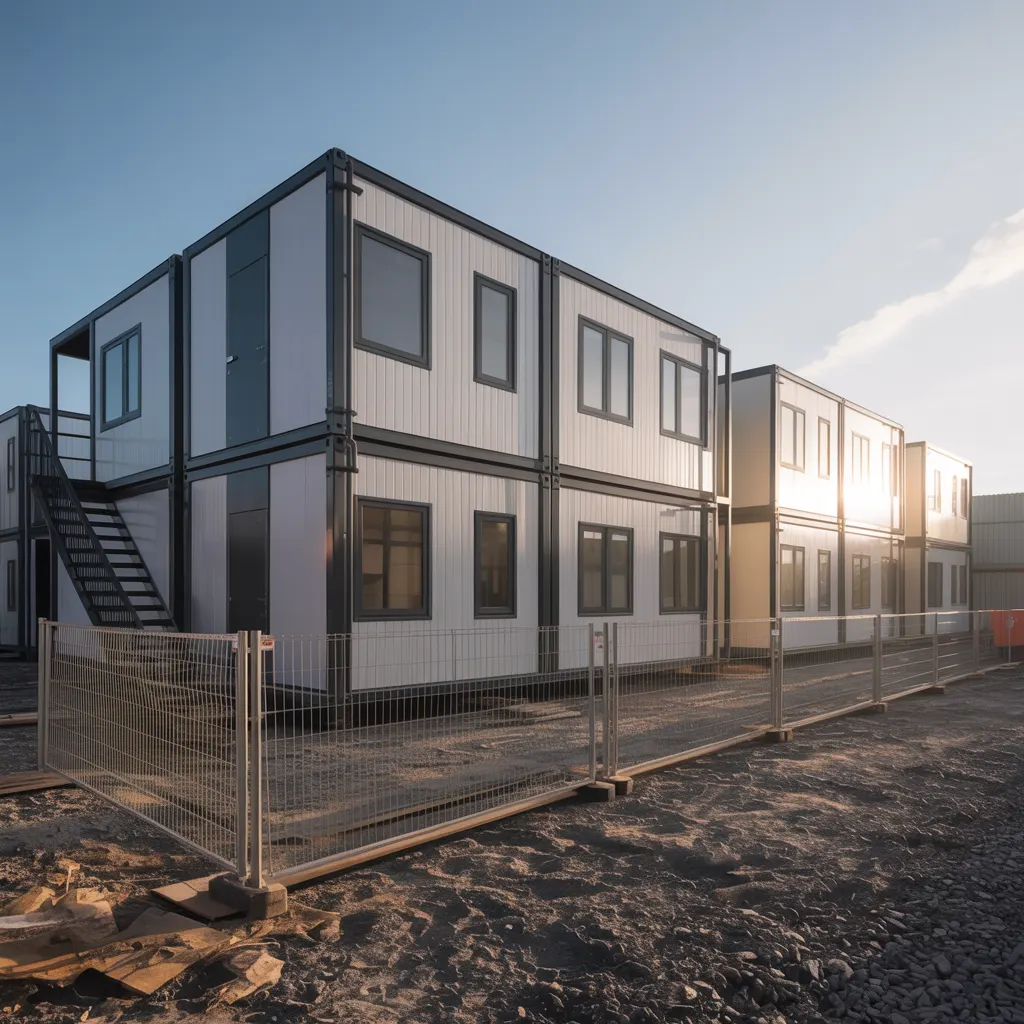

| Configuration | Single-storey & G+1 double-storey modular blocks |
| Structural System | Steel framework, PEB structures, containerized modules |
| Wall/Roof Panels | PUF/EPS sandwich panels, PPGI sheets, Aerocon panels |
| Insulation | 40–60 mm PUF for hot and coastal climates |
| Wind Resistance | Up to 44 m/s |
| Installation Time | 2–4 weeks for 100–300 worker camps |
| Cost Savings | 20–40% lower than conventional RCC construction |
| Compliance | BIS, NBC 2016, BOCW Act, EHS/ESG guidelines |
Prefab Labour Colonies & Portable Camps for Indian Projects
In the Indian construction and industrial context, workmen accommodation refers to temporary and semi-permanent housing for site workers, technicians, labourers, and support staff. These facilities are essential on construction sites, metro rail developments, highways, refineries, and power projects where a skilled workforce migrates from rural areas and requires on-site living arrangements.
Portable Office Cabin designs, manufactures, and installs prefabricated workmen accommodation across India. Typical camps for 100–300 workers are delivered and installed within 2–4 weeks depending on location and layout complexity. Key benefits include quick installation, cost-effective construction, worker retention, and compliance with BIS and labour welfare guidelines.
Prefab labour camps provide sleeping quarters, restrooms, kitchens, and communal areas with waste management systems, sanitation facilities, and clean water supplies. These structures are built with sturdy materials and construction techniques to withstand diverse environmental conditions.
Workmen Accommodation Gallery
Introduction to Labour Accommodation
Labour accommodation is a vital component of successful industrial projects, ensuring that workers, technicians, and support staff have access to safe, comfortable, and well-equipped living spaces during their time on site. Prefabricated labour camps and prefab labour hutments have emerged as the preferred solution for both temporary and semi-permanent worker housing in India's fast-paced construction and infrastructure sectors.
These structures are engineered with sturdy construction materials and assembled by a skilled workforce, guaranteeing durability and resilience against diverse environmental conditions. The versatile range of prefabricated labour camps available today allows clients to select options that perfectly match their site requirements, workforce size, and project timelines.
One of the standout advantages of prefab labour hutments is their quick installation and easy construction, making them ideal for projects with tight deadlines or limited land availability. Their economical nature ensures that clients can provide high-quality accommodation without exceeding budget constraints. Furthermore, these structures can be customized to meet specific requirements, offering flexibility in layout, amenities, and finishes.
Types of Workmen Accommodation Solutions
These structures accommodate both short-term (3–12 months) and long-term (1–5 years) deployments with durability designed accordingly.
Key Features of Prefabricated Workmen Accommodation
Steel & PEB Framework
Designed for wind speeds up to 44 m/s with PUF/EPS sandwich panels and PPGI sheets
Rapid Deployment
100–300 worker camps delivered and installed within 2–4 weeks
Fire & Safety Compliant
Extinguisher points, emergency exits, fire-resistant materials per NBC 2016
Scalable Capacity
From 50-bed single-storey to 500-bed double-storey modular colonies
Complete Ecosystem
Dormitories, kitchens, dining halls, toilets, recreation rooms, security cabins
Sustainable Build
Recyclable steel, factory-controlled fabrication, solar rooftop integration options
Technical Specifications
| Specification | Details |
|---|---|
| Structural System | Steel framework, PEB structures, containerized modules (wind speed up to 44 m/s) |
| Wall/Roof Materials | PUF/EPS sandwich panels, PPGI sheets, Aerocon panels, insulated roofs |
| Thermal Insulation | 40–60 mm PUF for hot climates and coastal humidity |
| Electrical | Concealed wiring, LED fittings, ceiling fans, AC provisions in offices |
| Windows/Doors | Powder-coated steel or UPVC doors, MS/aluminium windows with grills & mosquito mesh |
| Hygiene | Toilet blocks with Indian/Western WCs, 2,000–10,000 L overhead tanks, septic/STP |
| Fire Safety | Extinguisher points, emergency exits, fire-resistant materials |
| Flooring | Cement boards on steel joists, PVC vinyl in dormitories, anti-skid tiles in toilets |
| Corrosion Protection | 275 gsm zinc coating, epoxy primer + PU topcoat for coastal locations |
| Roof Drainage | PVC gutters (150mm diameter) with flashings for heavy monsoon rainfall |
Benefits of Prefab Workmen Accommodation for Projects
Time Savings
10,000 sq ft camp installed in 20–30 days vs 3–4 months for RCC
Cost Optimisation
20–40% savings through lower cost per bed and relocatable structures
Worker Wellbeing
Better ventilation, lighting, and sanitation reduce absenteeism by 15–20%
Compliance
Meets client EHS audits, ESG requirements, and third-party inspections
Sustainability
Recyclable steel, reduced material wastage, solar rooftop integration
Design & Layout Considerations for Workmen Colonies
Zoning Principles
- Separate sleeping areas from cooking/dining zones (minimum 50m)
- Position toilets and washing zones away from dormitories
- Locate office/admin blocks near entry gates
- Wide 4–6m internal pathways for worker movement and vehicles
Bed Density
6–12 beds per dormitory with adequate aisle space (4–6 sqm per worker), storage shelves, and personal lockers where feasible.
Climate-Responsive Design
- Orient buildings east-west to reduce solar heat gain
- Provide 2–3m verandas for shade
- Ensure 20% wall openings for cross-ventilation
Utilities Planning
Water supply lines, power cable routing, sloped drainage, septic tanks or STP, and waste-collection points with clear maintenance access.
Portable Camps for Remote Locations
Portable camps for remote locations have become an essential solution for industrial projects across India, where access to traditional infrastructure is often limited. These prefabricated labour camps are specifically designed to provide comfortable, durable, and efficient accommodation for workers stationed far from urban centres.
One of the standout features is their quick installation and easy construction, allowing clients to rapidly establish a fully functional site even in the most inaccessible areas. The versatile range includes dormitories, kitchens, dining halls, and recreation spaces—all customizable to meet the unique requirements of each project.
The labour colony concept is fully integrated into these portable camps, providing comprehensive living solutions including water supply systems, sanitation facilities, and electricity generation. This self-sufficiency is particularly valuable in remote locations where access to basic services may be limited.
Workmen Accommodation Across Indian Cities & Sectors
Key Regions
- Delhi NCR (Gurugram, Noida, Greater Noida)
- Mumbai-Pune belt
- Ahmedabad-Vadodara corridor
- Chennai & Coimbatore
- Bengaluru & Hyderabad
- Kolkata, Jaipur, Surat
Sector Applications
- Building construction and real estate
- Roads and highways (NHAI projects)
- Metro rail (Mumbai Metro, Delhi Metro extensions)
- Refineries and steel plants
- Power projects and solar parks in Rajasthan and Gujarat
- Mining operations in Odisha and Jharkhand
Portable Office Cabin Product Range for Workmen Facilities
Project Process: From Enquiry to Handover
Requirement Capture
Workers count, site location, project duration, climatic zone, compliance standards
Concept Layout
CAD drawings showing dormitories, toilets, kitchen, admin areas with detailed BOQ
Design Finalisation
Structural checks for wind and seismic loads per Indian standards
Manufacturing
10–20 days factory lead time depending on camp size
Logistics & Installation
Transport to site, foundation work, structure erection, utility connections
Handover
As-built documentation, maintenance guidelines, support contacts
Regulatory, Safety & Welfare Compliance
Many principal contractors insist on minimum welfare standards for labour accommodation backed by Indian labour welfare rules and international EHS guidelines.
Why Choose Portable Office Cabin for Workmen Accommodation
Portable Office Cabin is a specialised manufacturer and supplier of modular buildings focused on Indian project conditions with over 10 years of experience and cumulative delivery exceeding 1 million sq ft across 20+ states.
Frequently Asked Questions
Plan Worker Housing Early for Optimal Results
Prepare your project address, estimated workforce by category, land availability, and desired camp lifespan. Contact Portable Office Cabin today for a detailed proposal for your workmen accommodation needs.
